There are four holes in the base for mounting this column:
We can adjust the length of the cross arm by rotating this handle:

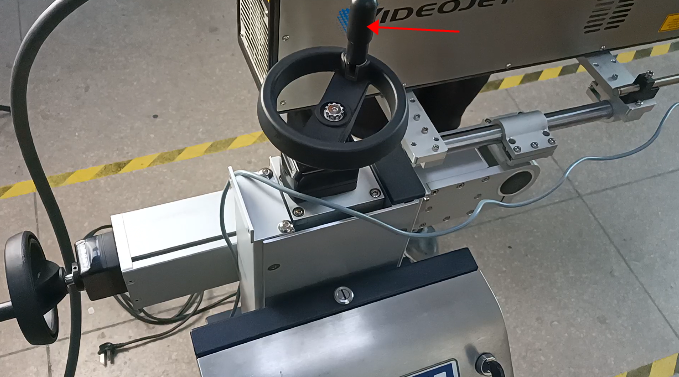

This column is also adjusted by rotating this handle:
This is the laser mount, which is a monolithic, mounted on the cross-arm:

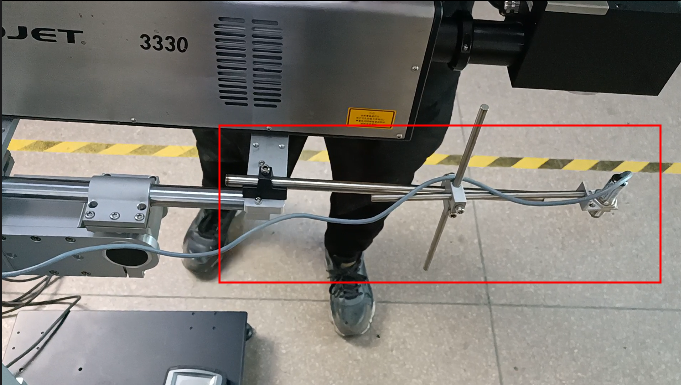

Here is the photoelectric bracket used to install the photoelectric:

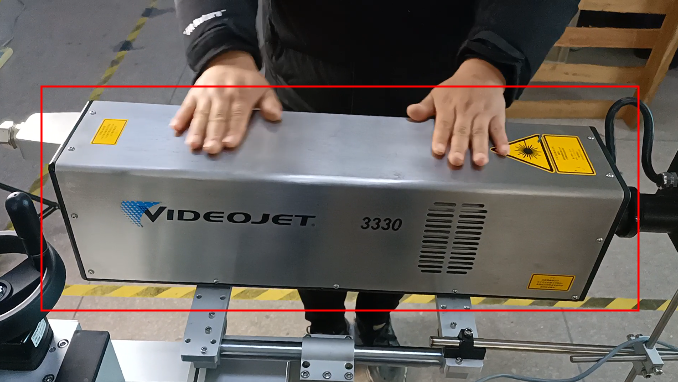

Here is the laser:

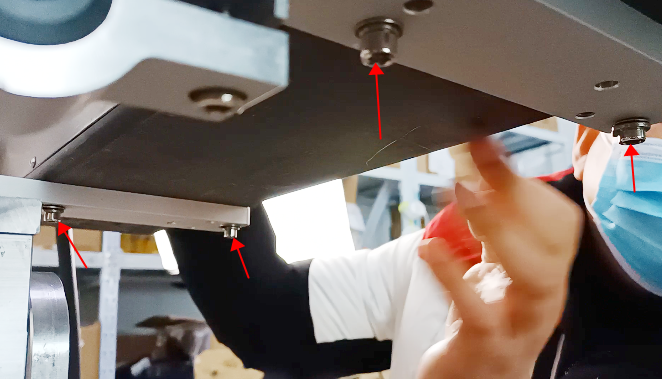

Fix the screws under the laser and the laser is installed:

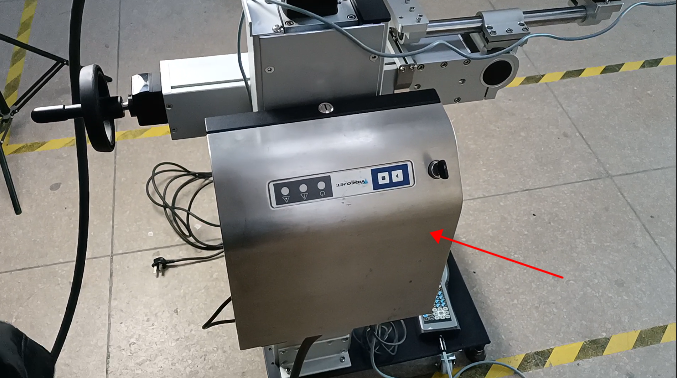

This is the host:

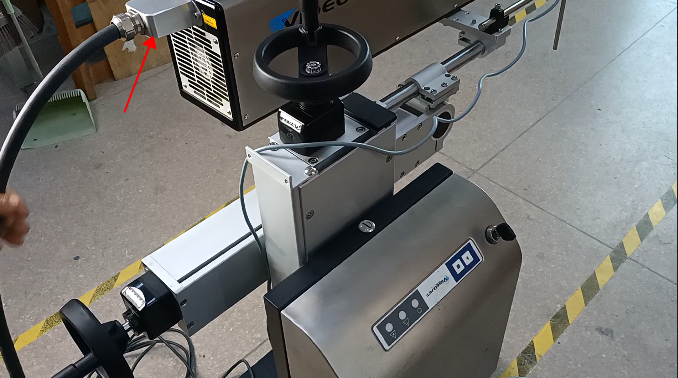

Plug the data cable into the laser:

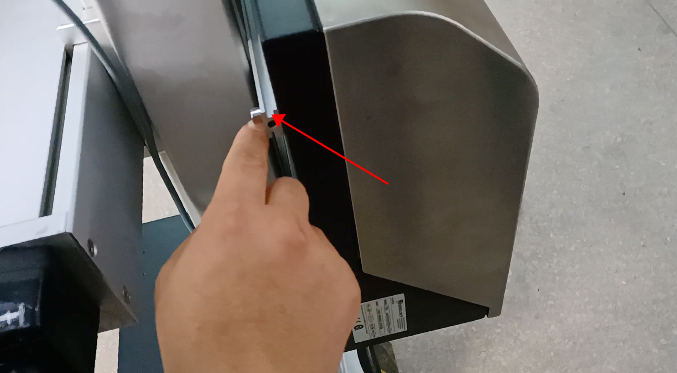

There are two hanging arms on this side, which are mounted on the column and used to hang the host:

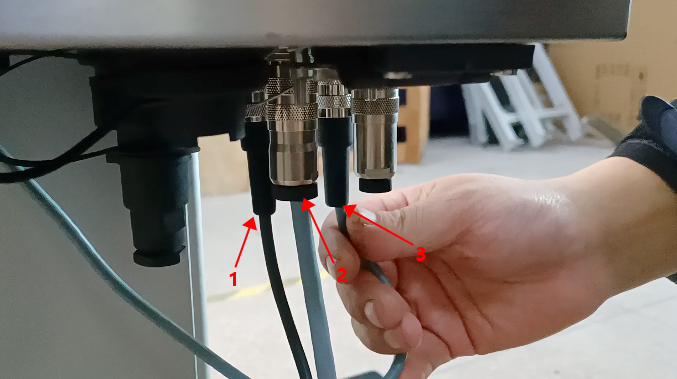

Then look at the installation of the basic accessories, 1 is the encoder plug, 2 is the handheld keyboard plug, and 3 is the photoelectric plug:
That’s the main thing.
