How to install the valve module?

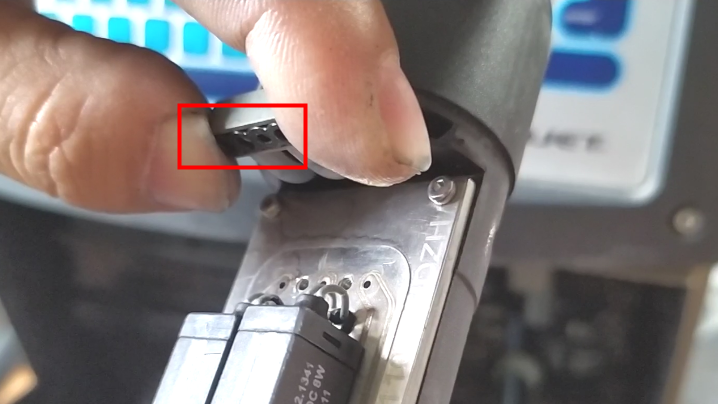

First of all, we install the solenoid valve, the washers above the solenoid valve must not be missing:

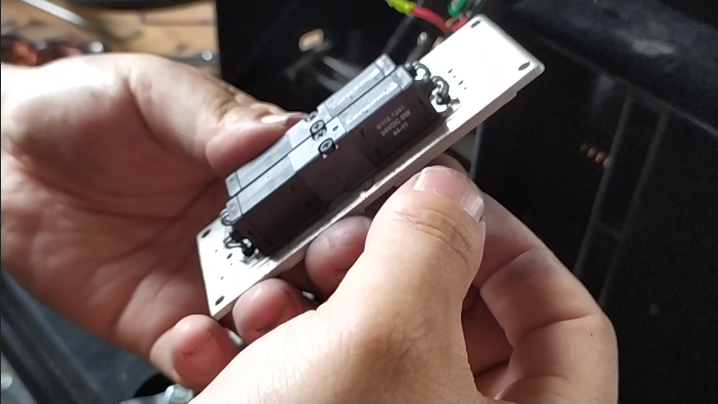

The solenoid valve is installed:

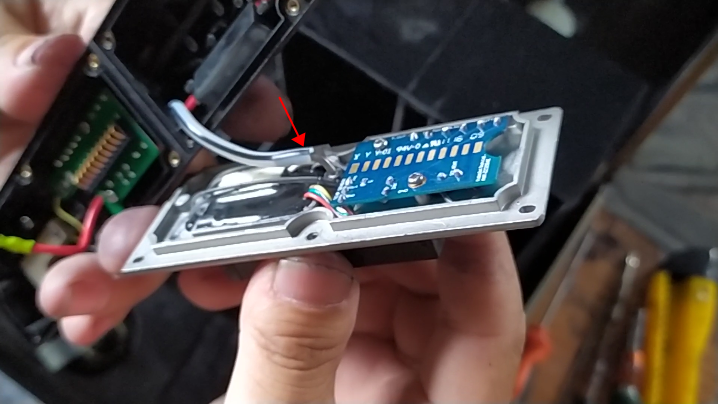

Once installed, we put this tube under the valve module,put the pipe in place:

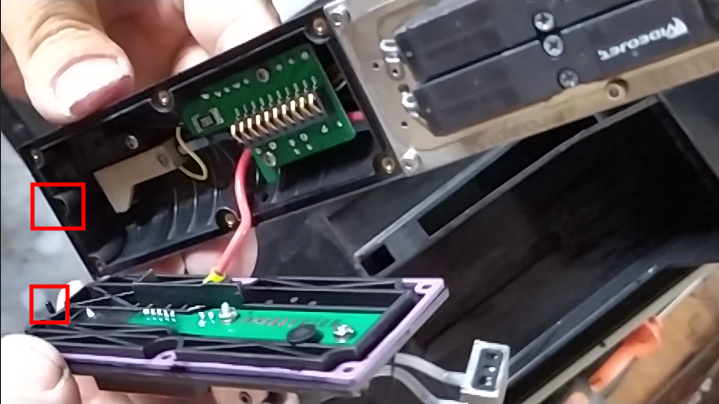

Once the pipe is set, we can plug it in here:

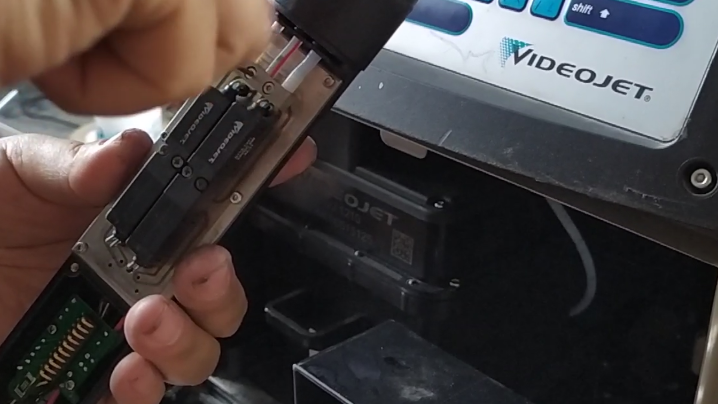

Just install the six screws here:

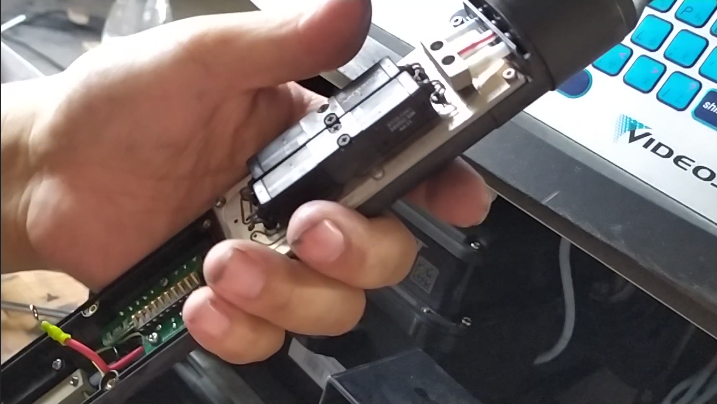

We have installed this valve module:
Be sure to see if there are washers behind this one with three tubes:
Then we install it:

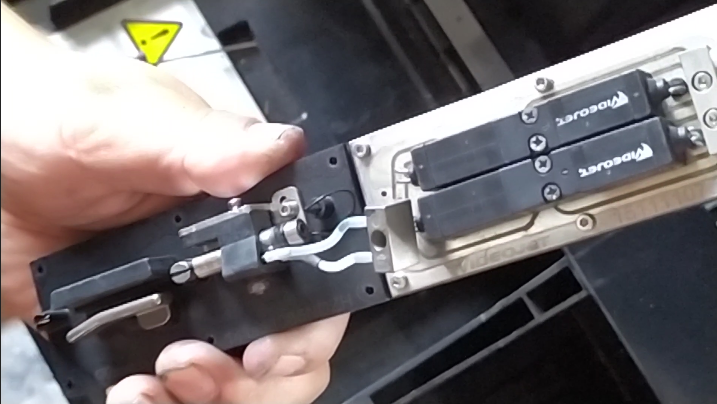

Let’s install this print module:
Connect it:
Then insert the recycling tank into this hole in the recycling tank:
Let’s just install the screws:
Connect the ink supply pipe:

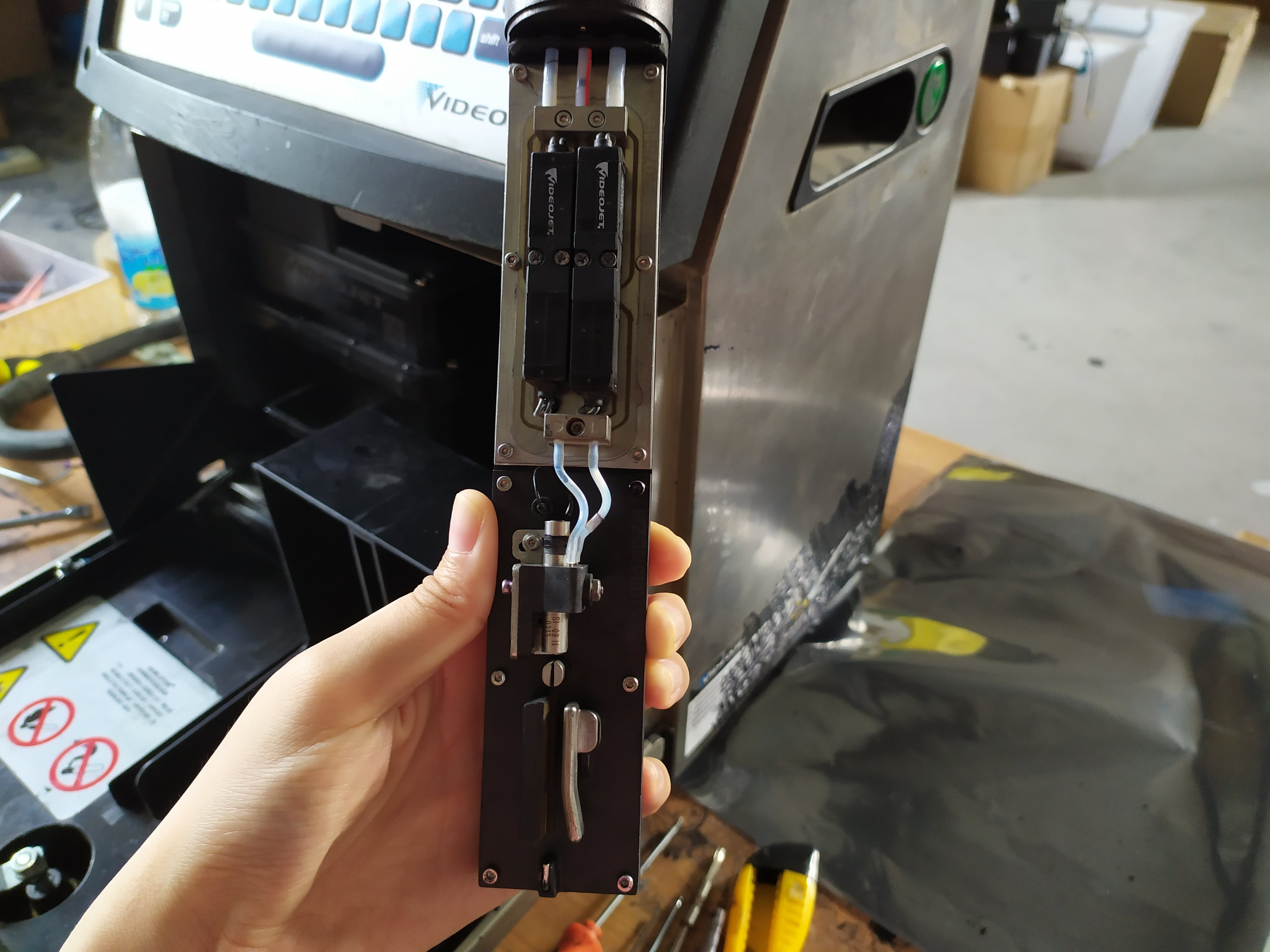

Installation complete:
