Let’s look at the cleaning and maintenance of domino white ink machines.

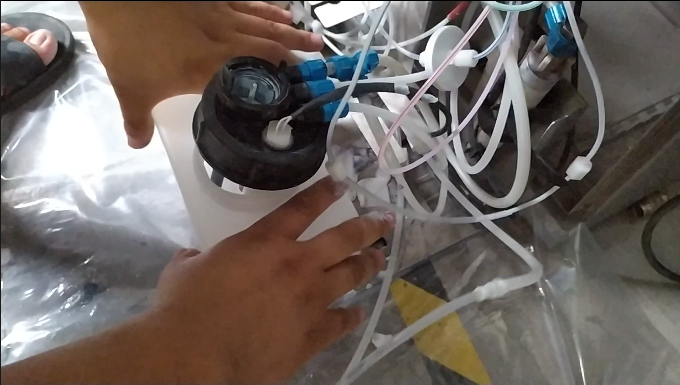

First, let’s take the cartridge off and set it aside:

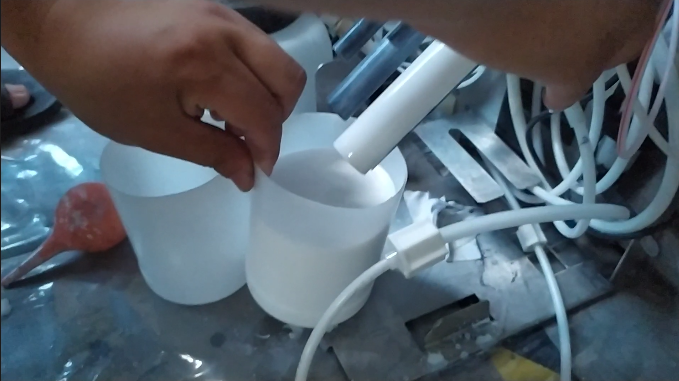

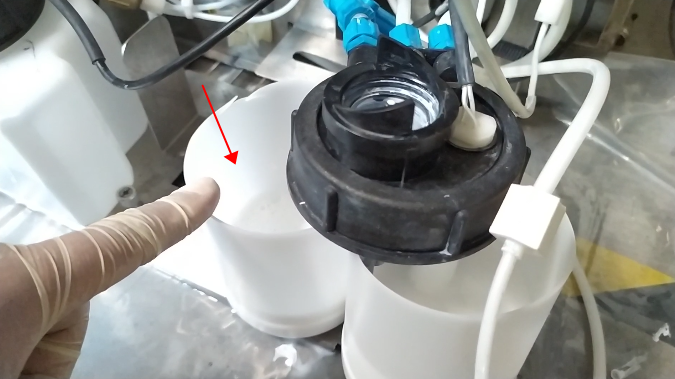

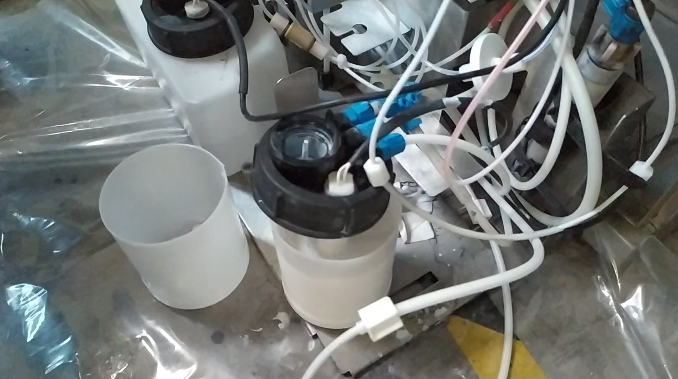

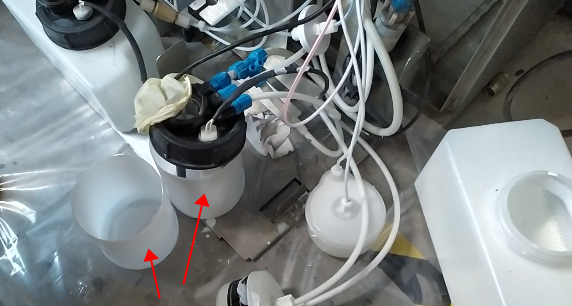

Then look for two empty bottles of cleaning fluid and cut it open from the middle:

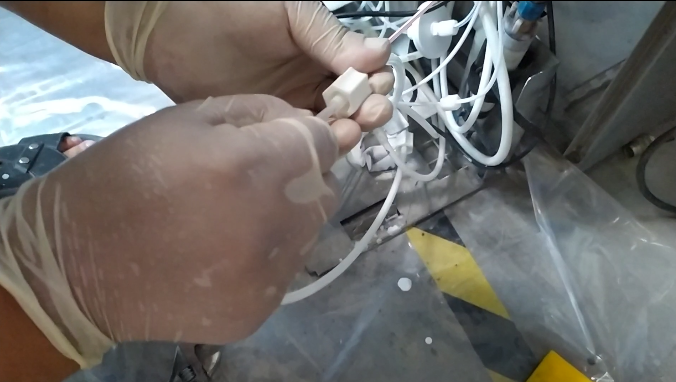

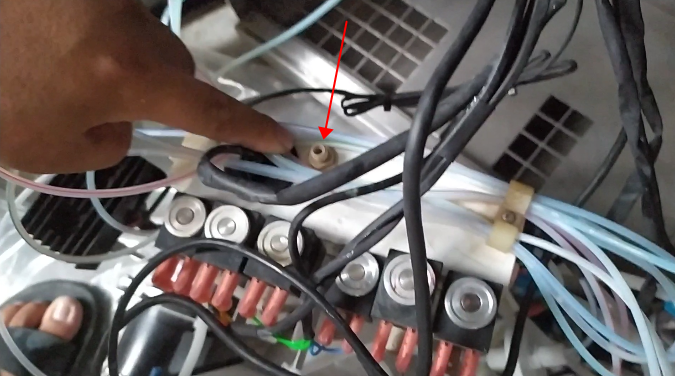

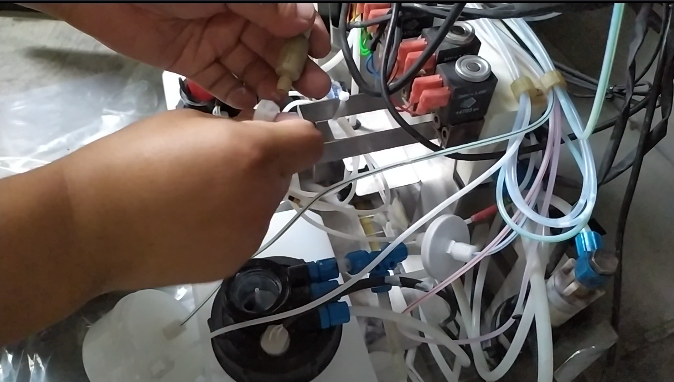

Next we find a tube to short connect the two tubes of this buffer:

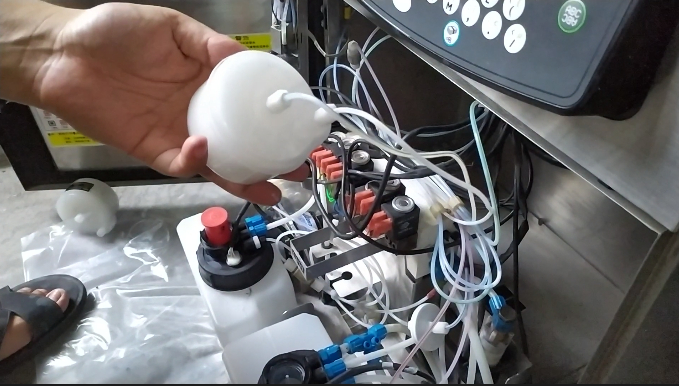

This is a short connection to the buffer:
The main filter also we also make it short connected:
This is a short connection to the main filter:

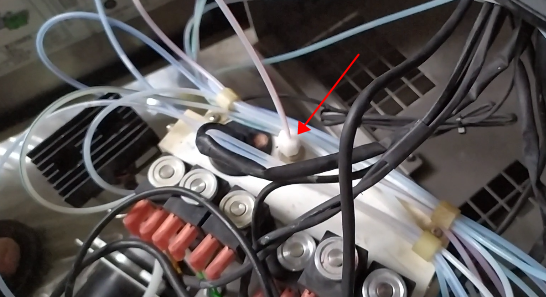

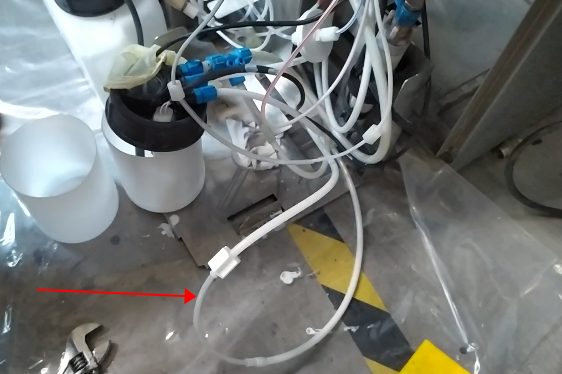

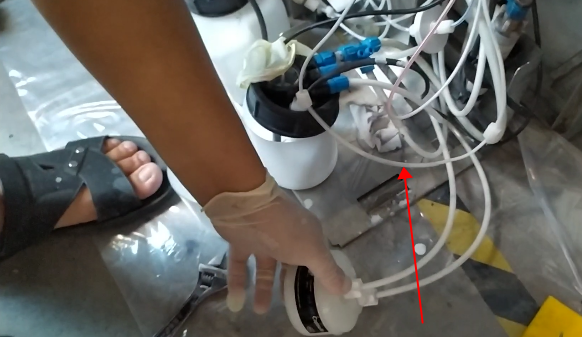

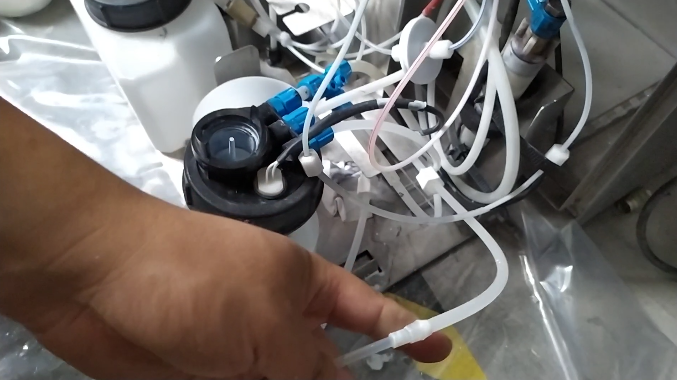

Plug the recycling line here:
Plug the ink supply line here:

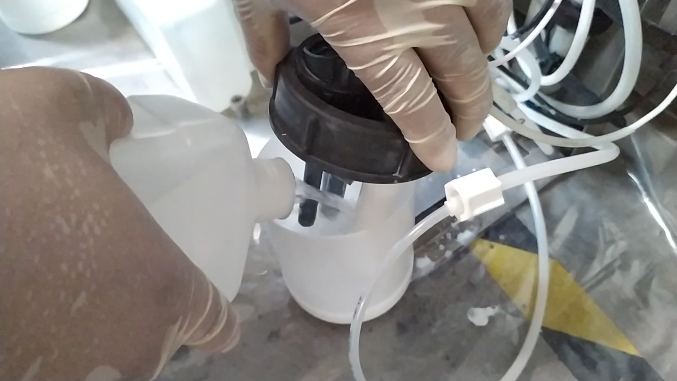

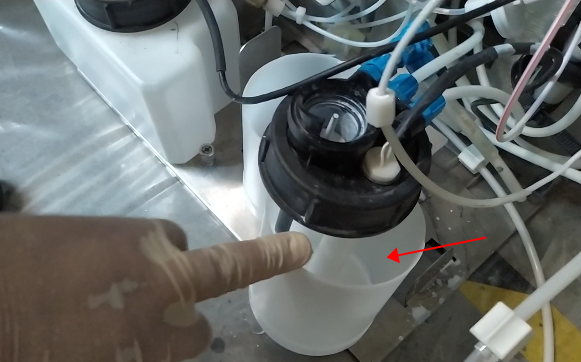

We’ll now first pour four or five hundred milliliters of cleaning fluid into it, and then let it circulate the ink:

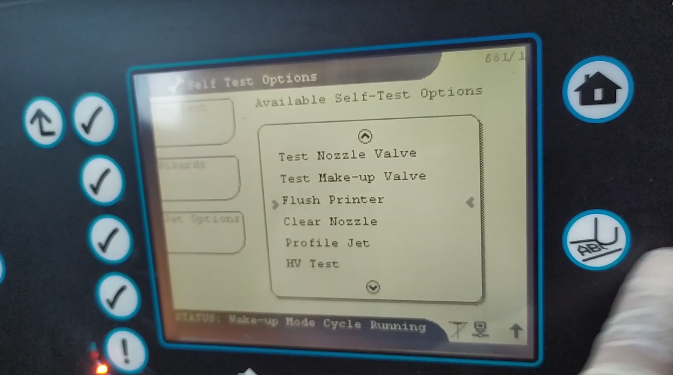

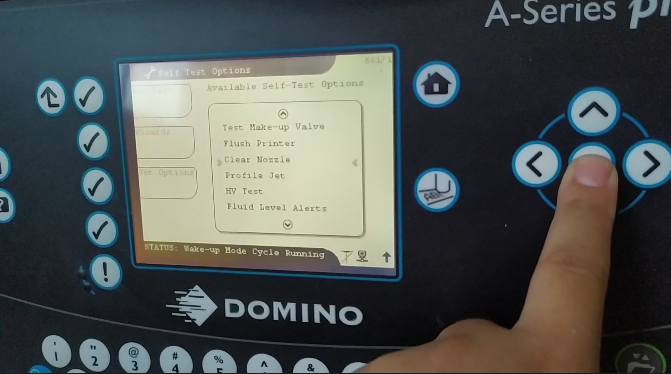

Let’s select “Flush printer” and press Next, press until the end, letting it ink itself:

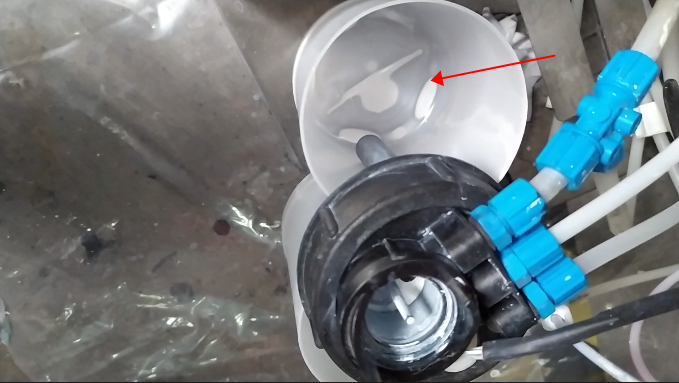

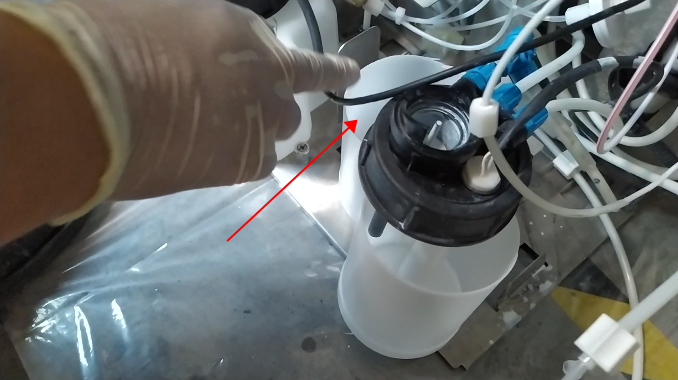

The ink is passed through the recycling line and discharged here:

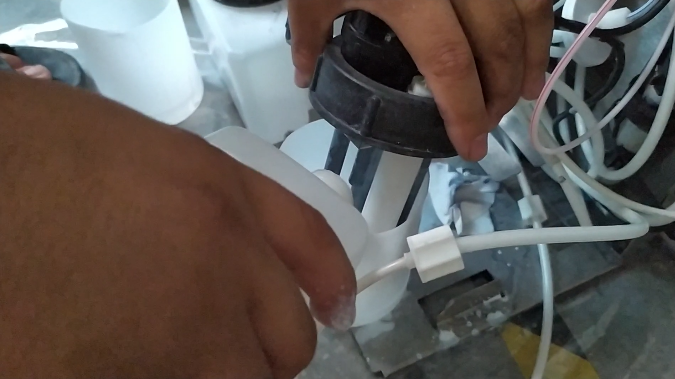

When the discharge is complete, pour it out.

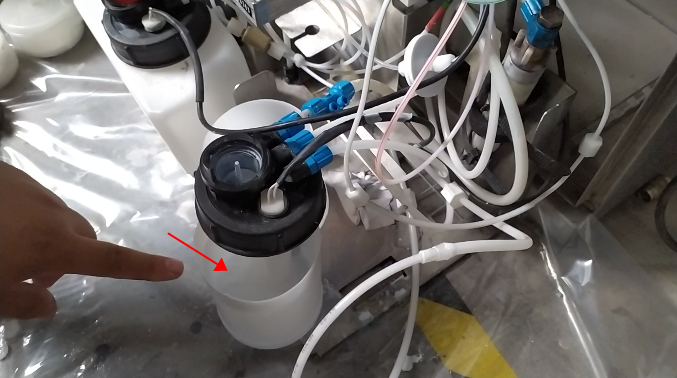

Then, add the cleaning fluid to it and let it circulate itself:
Wash again after completion, and wash several more times.
Select Flush printer, and then click Next, as before:
Wash it five or six times, then drain it, then replace it with fresh cleaning fluid and then wash it five or six times, then drain it:

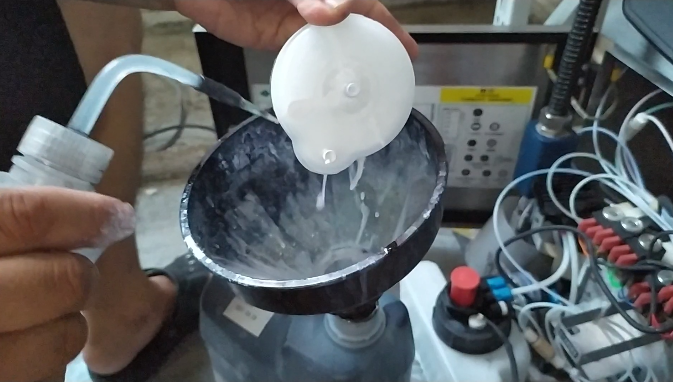

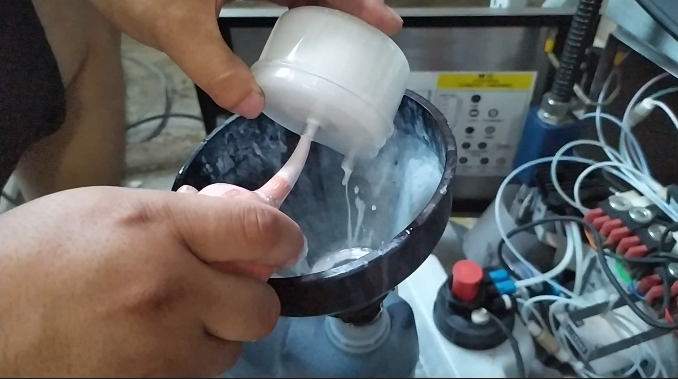

Then we can wash the filter, if it is used for a long time, it will have precipitation, it will be difficult to blow:
If it is normal maintenance, it needs to be replaced with a new one.
We’re just cleaning it up now:

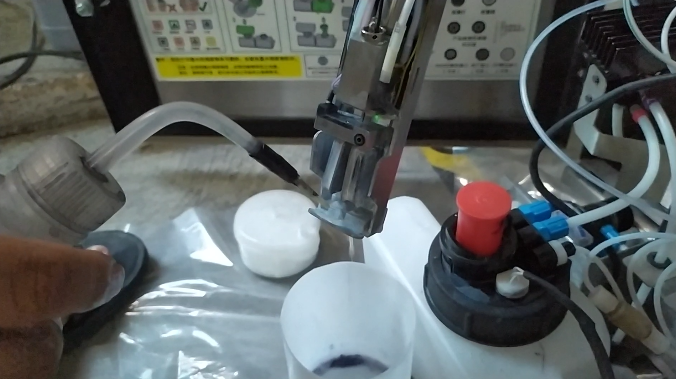

After cleaning the printer four or five times, we chose to Clear Nozzle, which automatically cleans the nozzle:

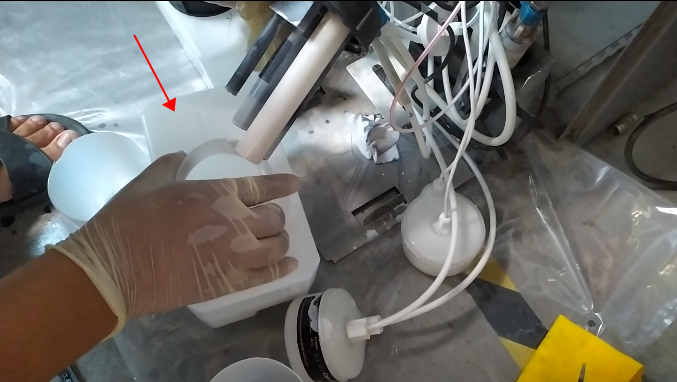

Spray the cleaning fluid and clean the recycling tank:
Then we pour out the cleaning fluid after cleaning:
Then wash again. Pour in the cleaning fluid:
Then continue to clean the machine:
Wash several times.
When you’re done, it’s the same as the first ink drain. Let’s put this ink supply here again:
Put the recycling line here:
Then continue to choose Flush Printer:
Wash the tubes all white:
Once washed, we can replace the filters and the cartridge
Replace the cartridge and tighten it:
Then we replace the buffer:
Follow the original connection path of the pipe to connect, to one-to-one correspondence.
The main filter can then be replaced:
Tighten after replacement.

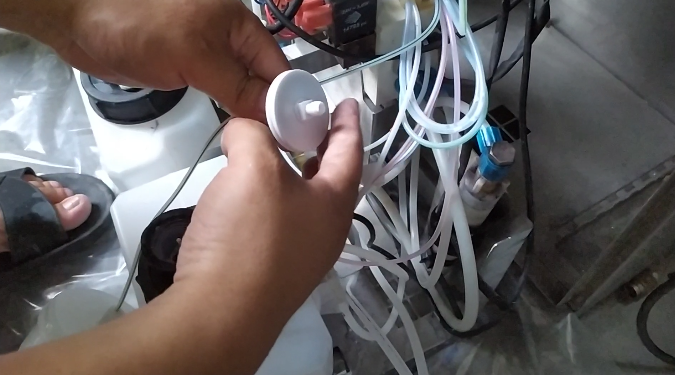

Then the recovery filter should also be replaced with a new one. Unscrew the upper and lower pipes, and then replace with a new filter:
The same is true for the solvent filter. The two sides will be removed as soon as they are rotated, and then replace the filter in the middle:

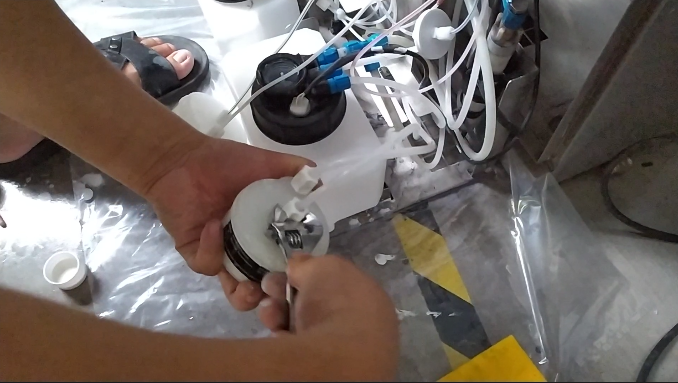

If we want to replace the ink supply filter, we can first spin the tube above out, then take a wrench to spin the filter out, and then replace it with a new one and then spin it in:

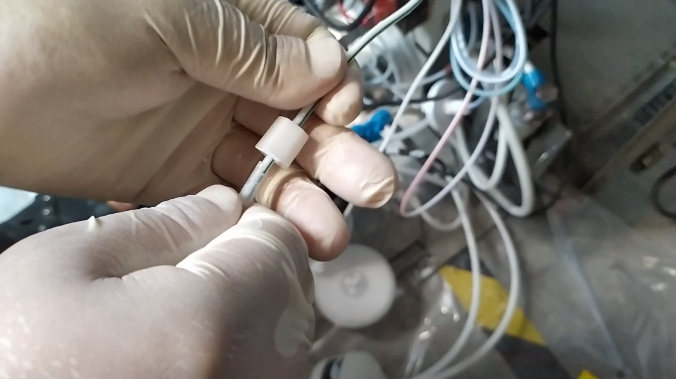

Then install the tube:
Line cleaning plus replacement filters, this is a complete set of maintenance.
